To optimize calorie burn, it's important to build lean mass in the large muscle groups like the lats. The GENESIS™ Lat features an adjustable thigh pad that is contoured and swivels for a comfortable fit to isolate the lower body. The signature swivel pulleys with extensive cable travel give users the range of motion to perform seated, standing and dynamic pulldown movements.
FEATURES

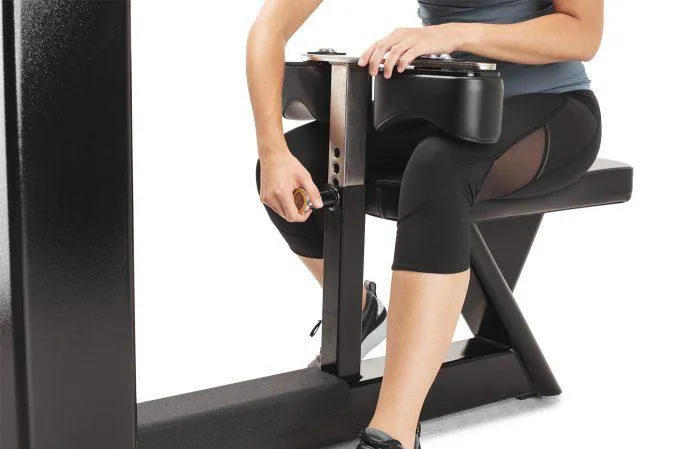

PADDED SEAT AND THIGH PADS
Thigh pads are contoured and swivel to comfortably isolate the legs. Seat bottom is also padded for fit and comfort.
EXTENSIVE CABLE TRAVEL
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
ENCLOSED WEIGHT STACK
The weight stack is enclosed to limit access to moving parts for safety.
BUILT TO LAST
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
KICK PLATES
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
PRODUCT FEATURE
PDF DOWNLOADSPRODUCT FEATURES
- Instructional PlacardsYes
- AdjustmentsAdjustable thigh pads
- Resistance1 arm: 100 lb / 45.3 kg
2 arms: 200 lb / 90.7 kg - Seat1.5 in thick foam / Molded vinyl
- PulleysSwivel pulleys
- Cable Travel85 in / 215.9 cm
- Rubber FeetMolded floor protectors
- Maximum User Weight350 lb / 159 kg
- Americans with Disabilities Act (ADA)N/A
PRODUCT SPECIFICATIONS
- Weight Stack200 lb / 90 kg
- Drop Down WeightN/A
- Weight Stack Configuration5 - 50 x 5 lb / 2.2 - 22.6 x 2.2 kg
60 - 200 x 10 lb / 27.2 - 90.7 x 4.5 kg - Standard Frame ColorBlack River, Flat Black, Platinum Sparkle, White River
- Optional Frame ColorCustom colors available upon request
- Plastic ColorEbony
- Standard Upholstery ColorBlack, Graphite, Blue Ridge, Burgundy, American Beauty Red
- Optional Upholstery ColorCustom colors available upon request
PRODUCT DIMENSIONS & WEIGHT
- Dimensions L x W x H56 x 52 x 87 in / 142.2 x 132 x 220.9 cm
- Footprint56 x 52 in / 142.2 x 132 cm
- Weight648 lb / 293.2 kg
- Shipping Dimensions65 x 56 x 85 in / 165.1 x 142.2 x 215.9 cm
- Shipping Weight485 lb / 219.9 kg
CERTIFICATIONS
- EN957, CE
WARRANTY (US & CANADA)
- Frame10 Years
- Parts3 Years
- Cables & Labor1 Year
- Cosmetic & Wear Items6 Months
- Upholstery & Padding120 Days
