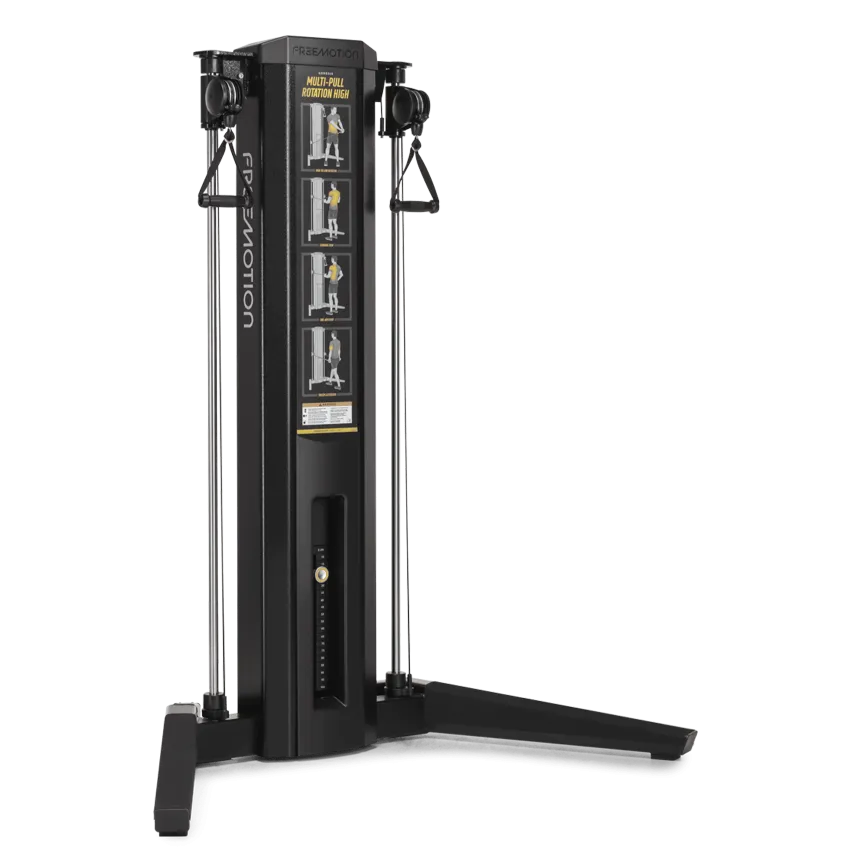

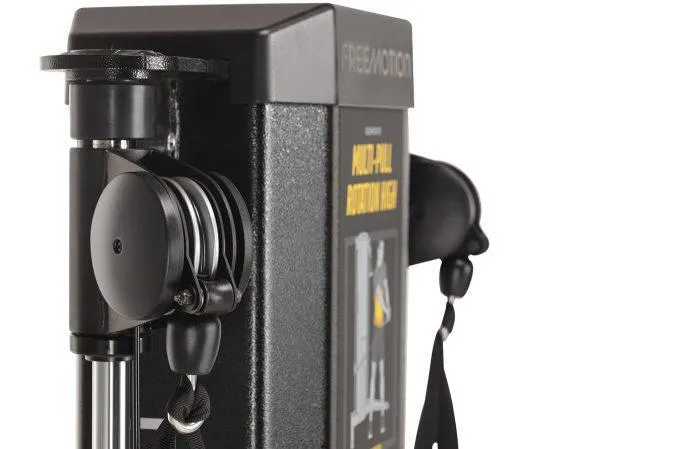

The GENESIS Multi-Pull/Rotation High features signature swiveling pulleys that slide vertically along a linear guide. This mechanism provides progressive resistance that builds throughout the movement. The Multi-Pull/Rotation High has an open design that is wheelchair accessible so individuals can work out directly from their chair. Handles move independently single or alternating arm exercises.
FEATURES
WALK UP AND WORK OUT
With no required adjustments, users can simply walk up, grab the handles and start moving.
EXTENSIVE CABLE TRAVEL
Cable length allows for full flexion and extension. Single arm: 58 in / 147 cm, two arms: 42 in / 106.6 cm.
ENCLOSED WEIGHT STACK
The weight stack is enclosed to limit access to moving parts for safety.
BUILT TO LAST
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
KICK PLATES
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
PRODUCT FEATURE
PDF DOWNLOADSPRODUCT FEATURES
- Instructional PlacardsYes
- AdjustmentsN/A
- Resistance1 arm: 50 lb / 22.6 kg
2 arms: 100 lb / 45.3 kg - SeatN/A
- PulleysSwivel Pulleys
- Cable Travel1 arm: 58 in / 147 cm
2 arms: 42 in / 106.6 cm - Rubber FeetMolded floor protectors
- Maximum User Weight350 lb / 159 kg
- Americans with Disabilities Act (ADA)Wheelchair Accessible
PRODUCT SPECIFICATIONS
- Weight Stack200 lb / 90 kg
- Drop Down WeightN/A
- Weight Stack Configuration10 - 200 x 10 lb / 4 - 90 x 4 kg
- Standard Frame ColorBlack River, Flat Black, Platinum Sparkle, White River
- Optional Frame ColorCustom colors available upon request
- Plastic ColorEbony
- Standard Upholstery ColorN/A
- Optional Upholstery ColorN/A
PRODUCT DIMENSIONS & WEIGHT
- Dimensions L x W x H44 x 63 x 74 in / 111.6 x 160 x 187.9 cm
- Footprint44 x 63 in / 111.6 x 160 cm
- Weight488 lb / 221.3 kg
- Shipping Dimensions57.2 x 39.1 x 72.8 in / 145.2 x 99.3 x 184.9 cm
- Shipping Weight416 lb / 188.6 kg
CERTIFICATIONS
- EN957, CE
REGULATORY APPROVALS
- ApprovalsEN957, CE
WARRANTY (US & CANADA)
- Frame10 Years
- Parts3 Years
- Cables & Labor1 Year
- Cosmetic & Wear Items6 Months
- Upholstery & Padding120 Days
